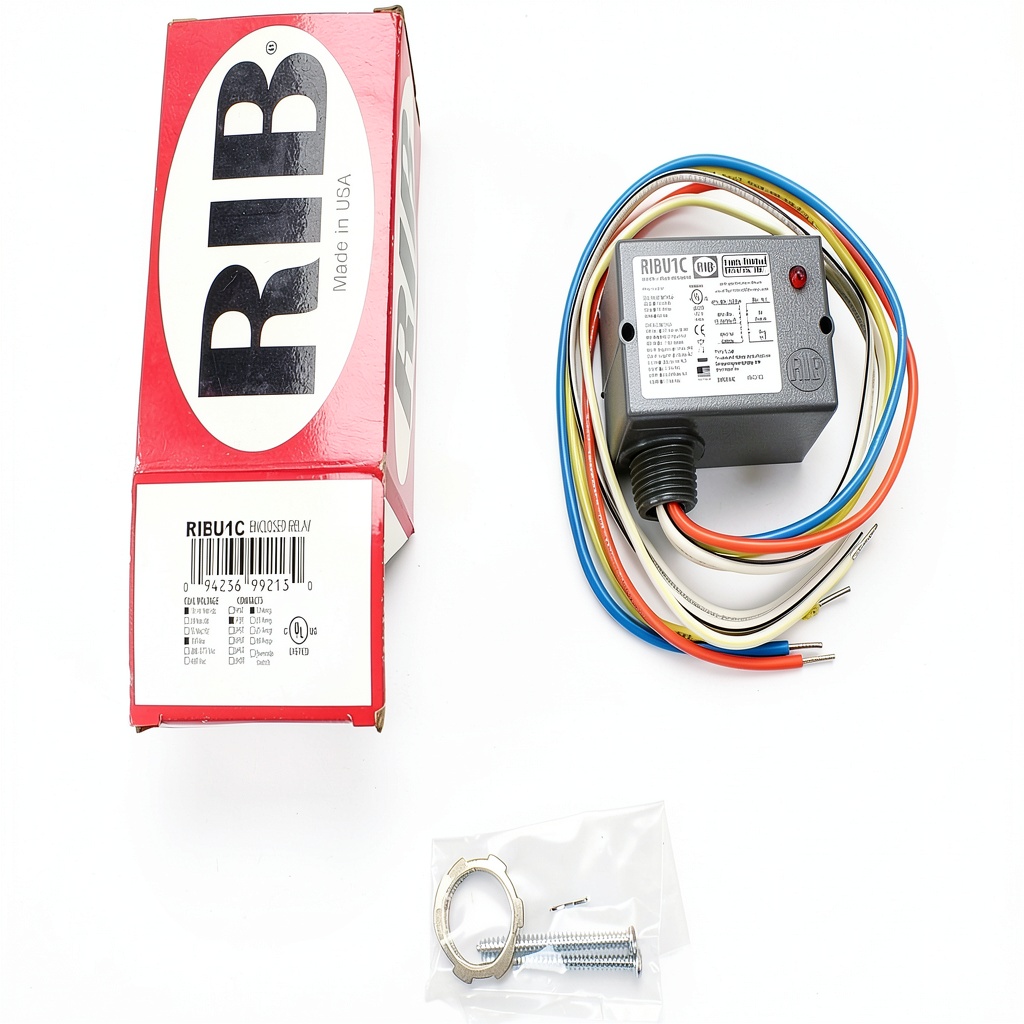

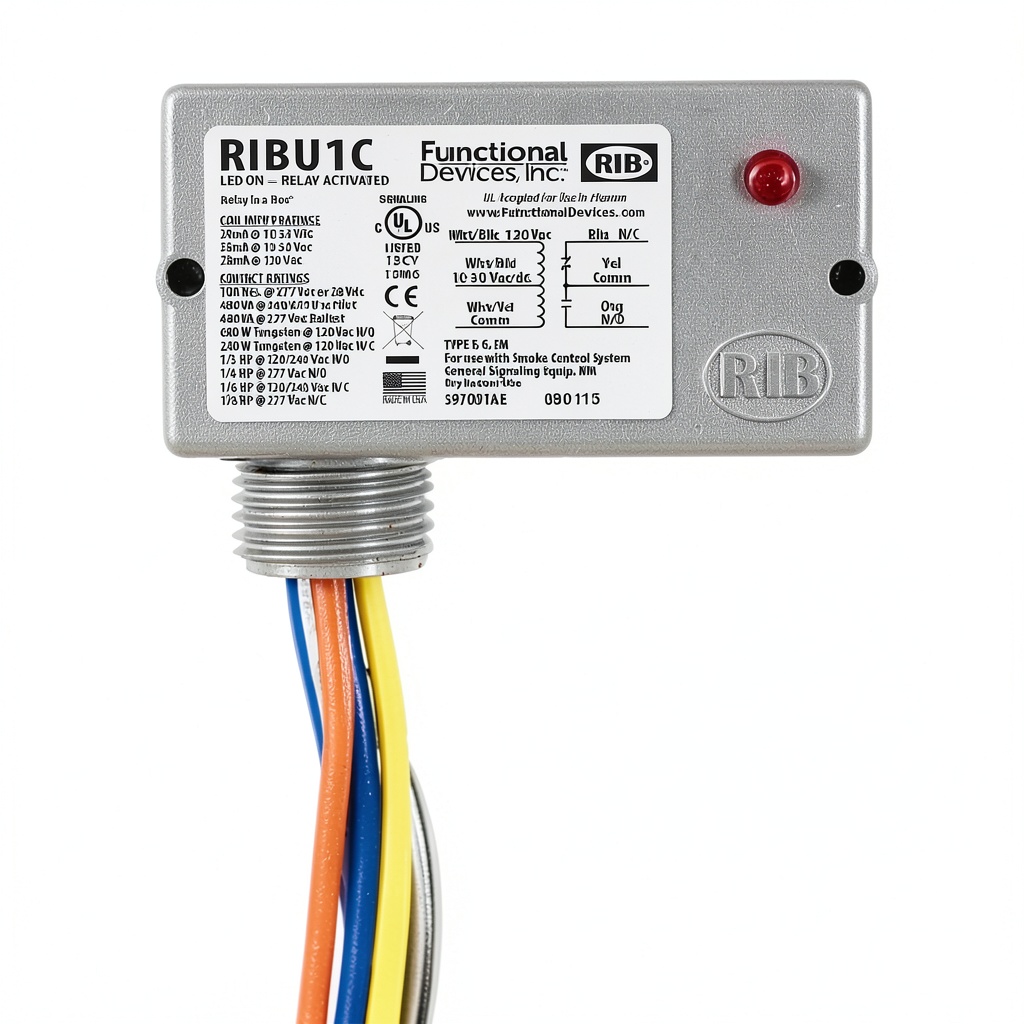

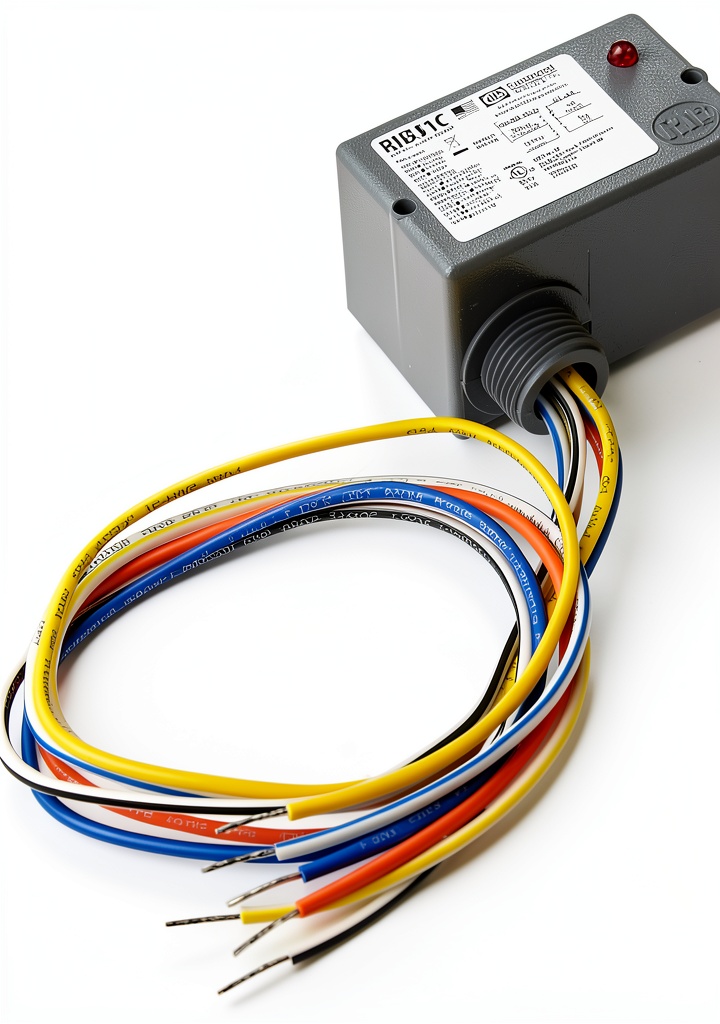

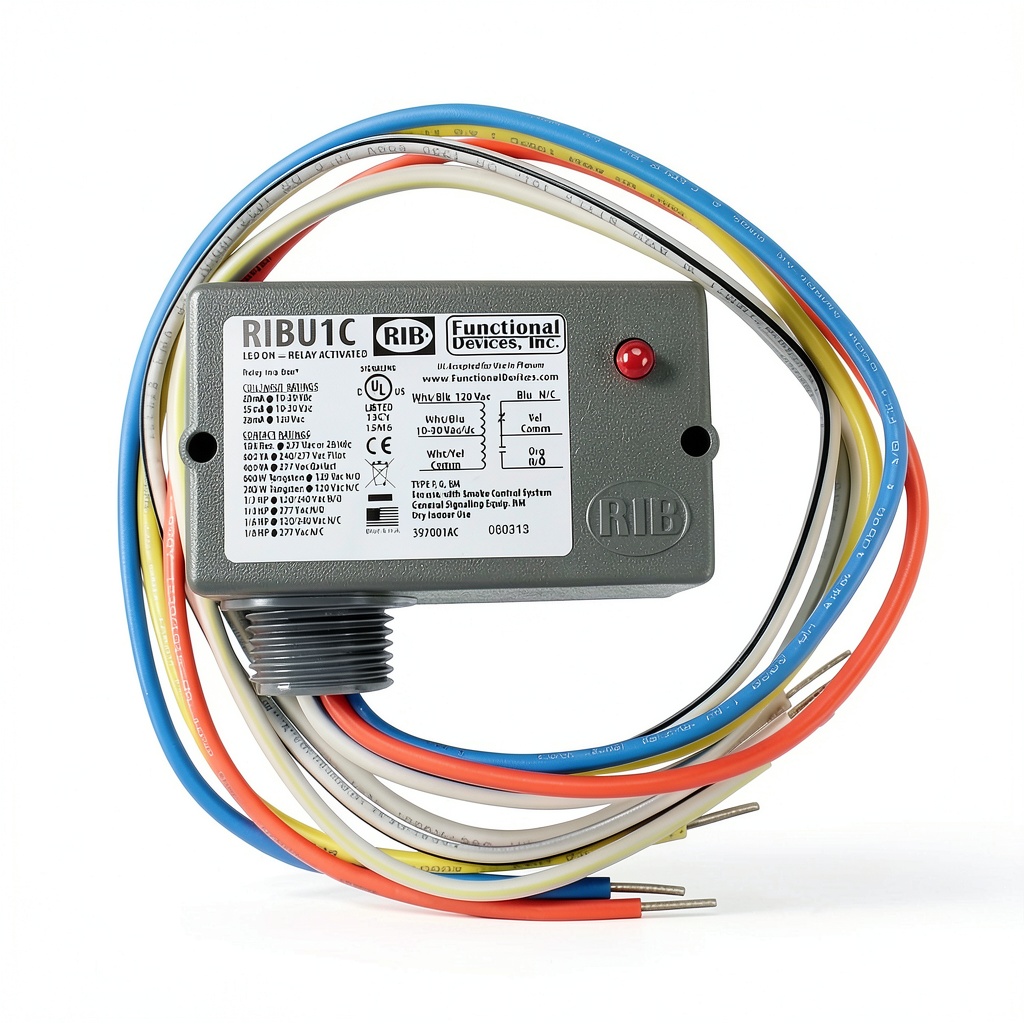

Functional Devices RIBU1C Enclosed Pilot Relay 10A SPDT with 120V Coil

Description

Product Overview

The Functional Devices RIBU1C Enclosed Pilot Relay is engineered to meet the rigorous demands of modern industrial automation, offering a reliable 10 A SPDT configuration that ensures precise control of power distribution across a wide range of applications. Constructed from high‑grade dielectric materials and featuring a robust enclosure, the relay protects internal contacts from dust, moisture, and mechanical shock, extending service life even in harsh environments. The coil operates across a flexible voltage range of 10‑30 VAC/DC up to 120 VAC, providing versatility for both low‑voltage control circuits and higher‑voltage interfacing without the need for additional conversion hardware. With dimensions of 2.8 × 1.8 × 1.8 inches and a weight of just 0.01 ounces, the unit integrates seamlessly into compact panel layouts while maintaining excellent thermal performance. Detailed specifications include a National Stock Number of 5945‑01‑587‑5723, a product dimension that supports tight spacing, and a proven track record reflected in a 4.7‑star rating from over 470 verified customer reviews, underscoring its reliability and consistent performance in real‑world deployments.

Usage

Designed for versatility, the RIBU1C relay excels in a variety of industrial settings, from manufacturing assembly lines to building management systems. Its SPDT contact arrangement enables users to switch a single load between two circuits, making it ideal for applications such as motor control, heater regulation, and lighting management where precise on/off sequencing is critical. The wide coil voltage range accommodates both legacy control panels that operate on 12 VAC and newer digital systems that may require 120 VAC, reducing the need for additional voltage conversion components and simplifying wiring schematics. Engineers and technicians appreciate the relay’s quick response time and low power consumption, which contribute to overall system efficiency and reduce operational costs. In HVAC installations, the relay can be employed to manage fan speed selectors, damper actuators, and temperature sensor feedback loops, ensuring consistent climate control while protecting equipment from voltage spikes. Its compact footprint also makes it suitable for retrofit projects where space constraints previously limited upgrade options.

Why Choose Us

Choosing Functional Devices as your relay supplier means partnering with a company that prioritizes quality, durability, and customer satisfaction. Each RIBU1C unit undergoes rigorous testing procedures, including electrical endurance, mechanical life cycle, and environmental resistance assessments, guaranteeing performance that meets or exceeds industry standards such as IEC 60947‑5‑1. Our dedicated support team provides technical assistance throughout the product lifecycle, from initial selection and integration guidance to after‑sales service and warranty coverage. We maintain an extensive inventory to ensure rapid fulfillment, minimizing downtime for critical projects. Additionally, our commitment to continuous improvement drives ongoing enhancements in material selection and design optimization, delivering a relay that not only meets current specifications but also anticipates future technological advancements. By selecting the RIBU1C, you benefit from a proven solution that combines robust construction, flexible coil options, and a reputation for reliability backed by thousands of satisfied customers worldwide.

Key Features

• Compact size fits tight panel spaces while delivering high‑current 10 A switching capability.
• Versatile coil voltage range (10‑30 VAC/DC to 120 VAC) reduces the need for additional converters.
• Durable enclosure protects contacts from dust, moisture, and mechanical shock for long service life.
• SPDT configuration enables flexible load routing for motor, heater, and lighting control.
• Responsive customer support and comprehensive warranty ensure confidence in every installation.

FAQ

What is the maximum load current the relay can handle?

The RIBU1C is rated for a continuous load current of 10 A, suitable for most control and switching applications in industrial environments.

Can the relay be used with both AC and DC coil voltages?

Yes, the coil is designed to operate across a range of 10‑30 VAC/DC as well as 120 VAC, providing flexibility for various control circuit requirements.

Is the relay suitable for outdoor installations?

While the relay is sealed against dust and moisture, it is recommended for indoor or sheltered outdoor use where it is protected from direct exposure to weather elements.

What warranty does Functional Devices offer for this relay?

Functional Devices provides a standard one‑year limited warranty covering manufacturing defects, backed by a responsive technical support team.

How does the RIBU1C compare to other relays in the same category?

Compared to similar electromechanical relays, the RIBU1C offers a unique combination of compact dimensions, a wide coil voltage range, and a high customer satisfaction rating, making it a competitive choice for demanding applications.
