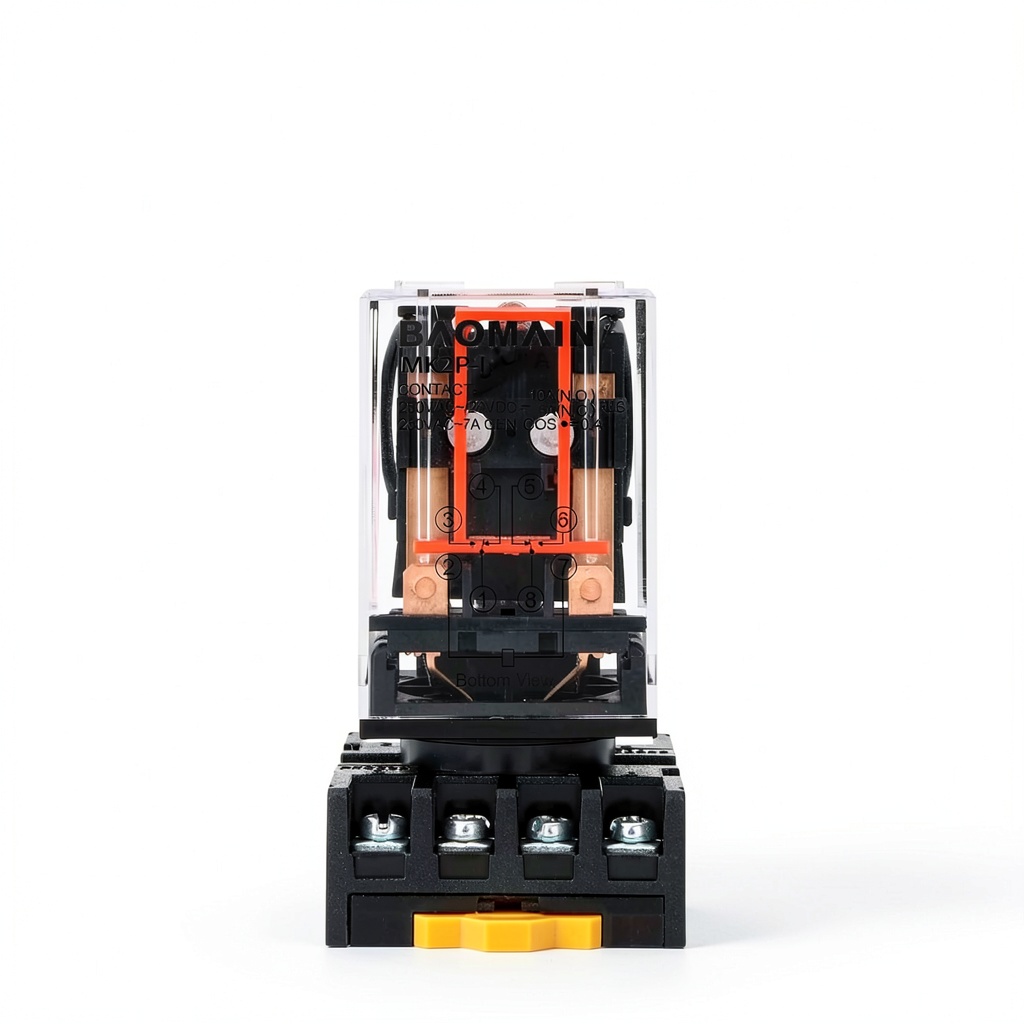

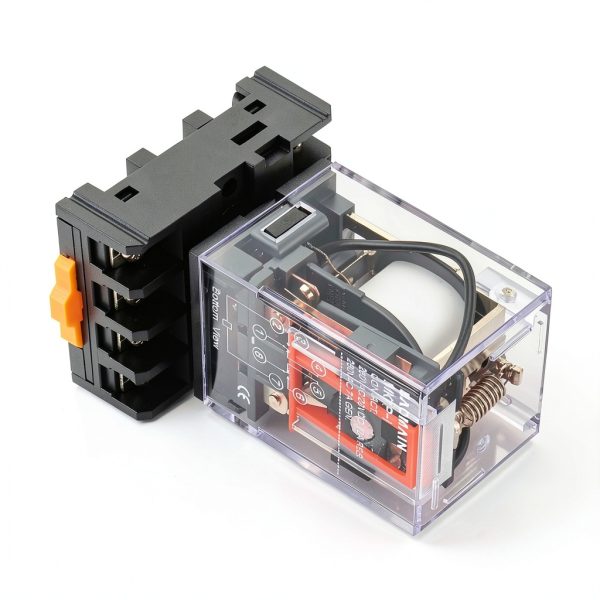

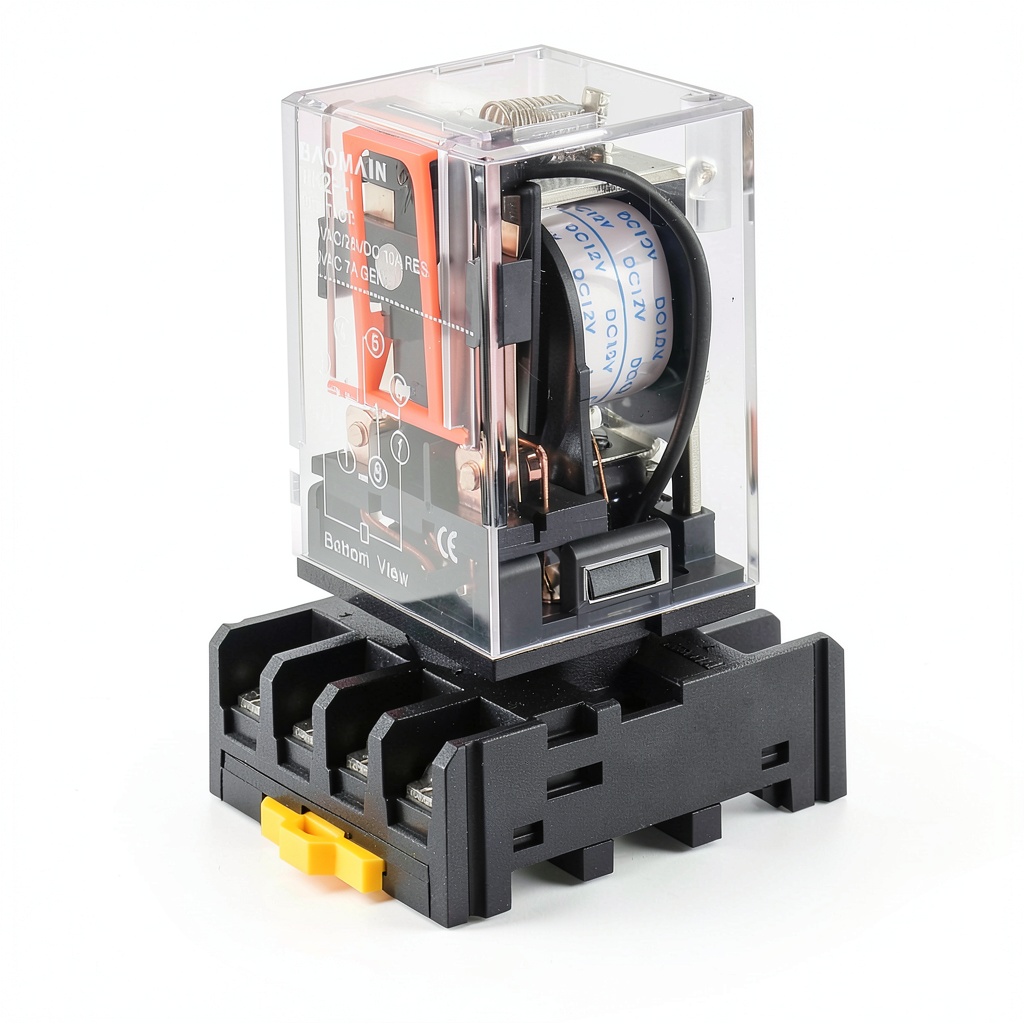

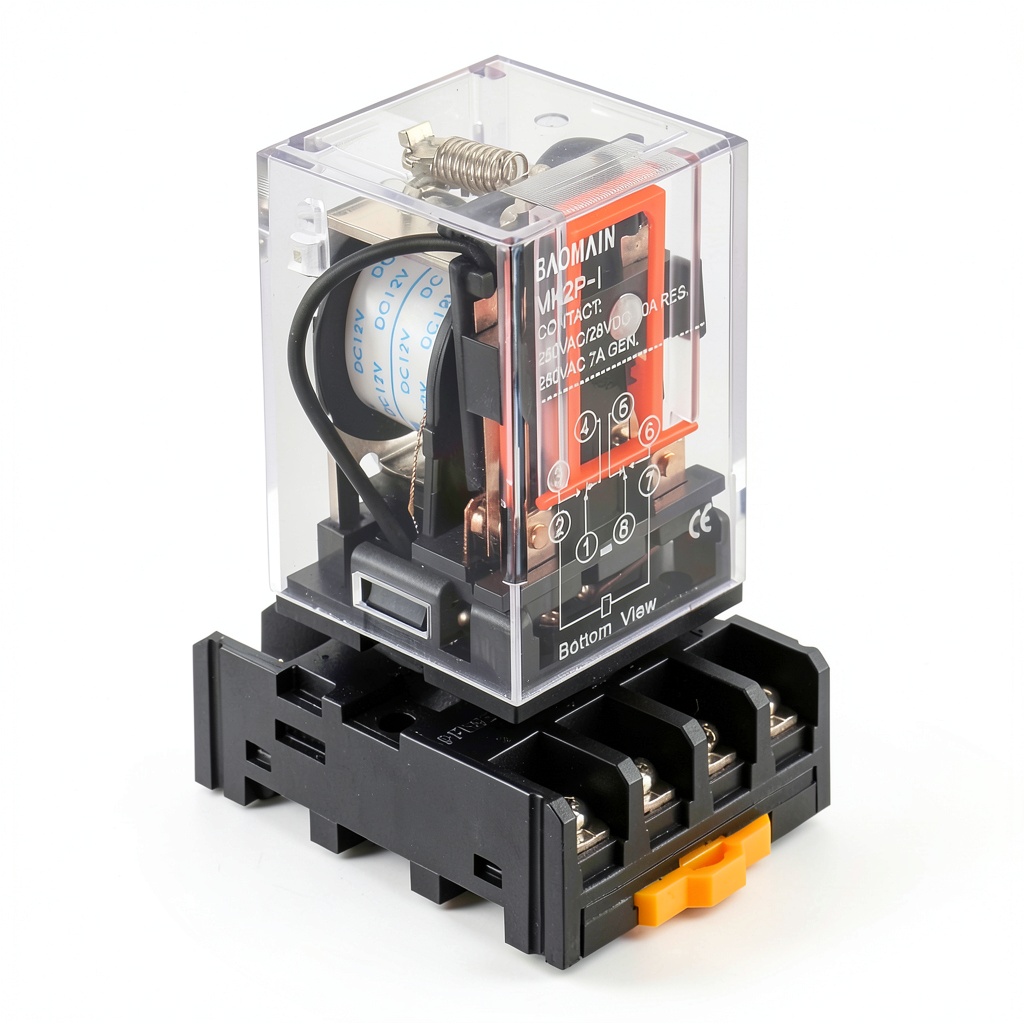

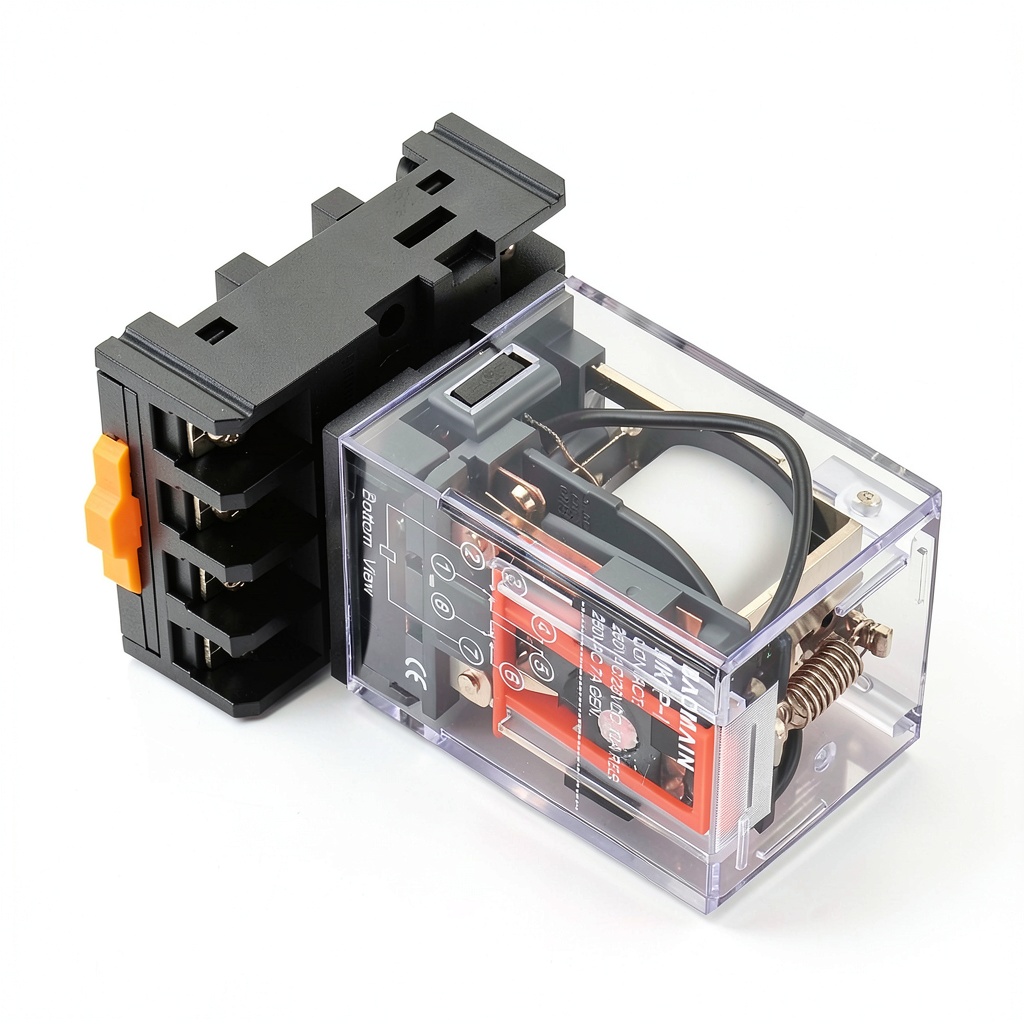

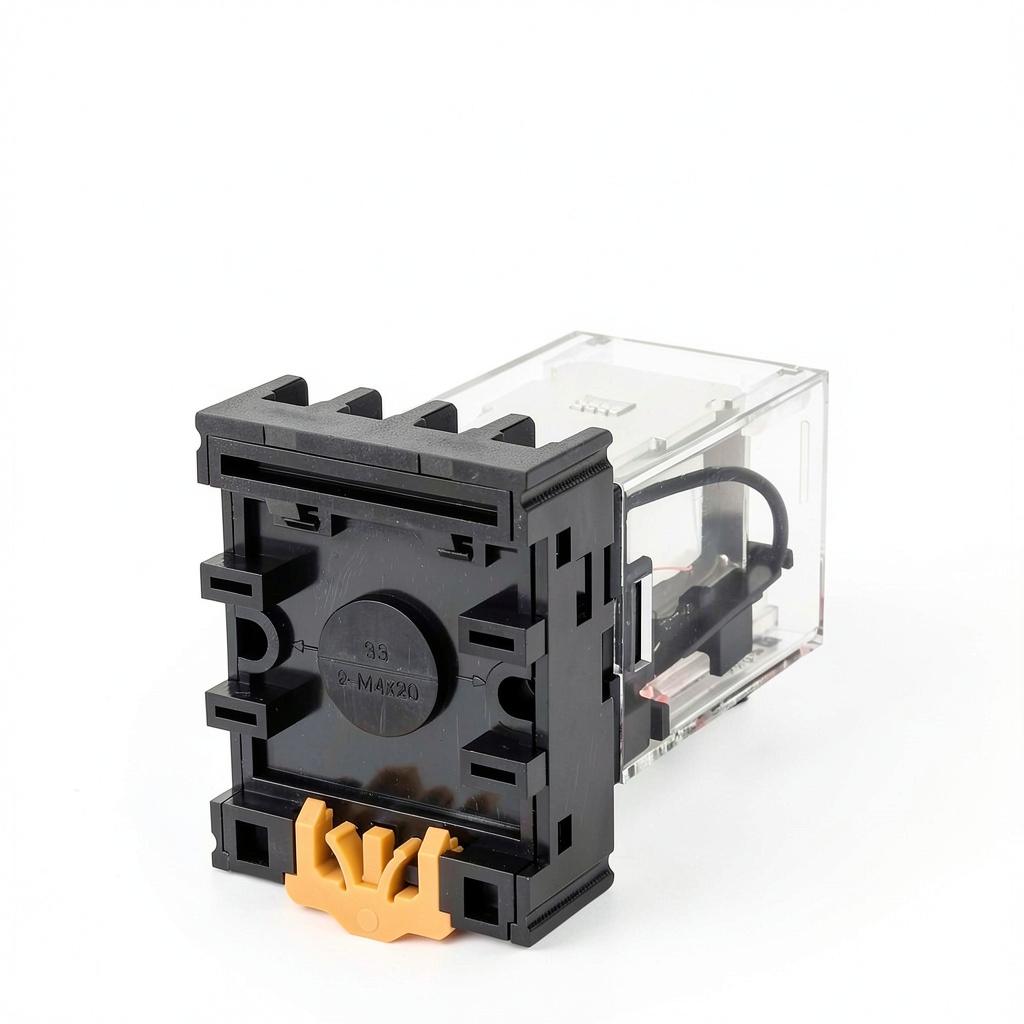

Baomain Power Relay MK2P-I 12VDC DPDT 8 Pin Plug-in Terminal Socket

Description

Product Overview

The Baomain MK2P-I 12VDC DPDT electromechanical relay is engineered for robust performance in demanding automation and industrial control environments. Featuring a 12 VDC coil, the relay can reliably switch loads up to 10 A, providing a solid balance between power handling and energy efficiency. Its dual‑pole double‑throw (DPDT) configuration offers two independent sets of contacts—each with two normally open (NO) and two normally closed (NC) terminals—allowing simultaneous control of separate circuits without the need for additional components.

Constructed with high‑quality copper windings and a durable phenolic resin housing, the relay ensures long‑term stability and resistance to heat, vibration, and electrical noise. The integrated plug‑in terminal socket simplifies wiring, enabling quick plug‑and‑play installation on standard 35 mm DIN rails. This design eliminates the need for soldering or complex rewiring, reducing downtime and maintenance costs. The compact 8‑pin layout, combined with a package size of 3.1 × 2.2 × 1.6 inches and a weight of just 3.99 oz, makes it an ideal fit for space‑constrained panels and enclosures.

Additional specifications include a rated insulation voltage of 250 VAC, a contact resistance of less than 100 mΩ, and a mechanical life of over 10 million operations. The relay complies with IEC 60947‑5‑1 standards, ensuring compatibility with a wide range of global industrial applications. Whether used in PLC‑controlled machinery, HVAC systems, or custom electronic projects, the Baomain MK2P‑I relay delivers consistent, repeatable performance that engineers can trust.

Usage

Designed for versatility, the Baomain MK2P‑I relay excels in a variety of real‑world scenarios. In automated manufacturing lines, it can manage motor starters, solenoid valves, and sensor inputs, providing precise timing and sequencing essential for high‑throughput operations. Its DPDT contacts enable users to switch between two distinct circuit paths, making it perfect for applications such as bidirectional motor control, safety interlocks, and signal routing.

Industrial control panels benefit from the relay’s plug‑in terminal socket, which allows technicians to replace or upgrade the unit without dismantling the entire wiring harness. This feature is especially valuable in environments where equipment uptime is critical, such as chemical processing plants, water treatment facilities, and renewable energy installations. The DIN‑rail mounting capability ensures a secure, vibration‑resistant fit, reducing the risk of loose connections caused by mechanical stress.

For hobbyists and prototype developers, the relay offers a straightforward integration path into breadboard or custom PCB designs. Its 12 VDC coil voltage aligns with common low‑voltage power supplies, while the 10 A contact rating accommodates a broad spectrum of loads, from LED arrays to small actuators. The clear labeling of pins and the inclusion of a plug‑in socket streamline the learning curve for newcomers to electromechanical control.

Why Choose Us

Choosing the Baomain MK2P‑I relay means selecting a product backed by rigorous quality assurance processes and a reputation for reliability. Each unit undergoes comprehensive testing for coil resistance, contact resistance, dielectric strength, and mechanical endurance, ensuring that it meets or exceeds industry standards before it reaches the customer.

Baomain’s commitment to customer satisfaction extends beyond the point of sale. Our technical support team is available to assist with installation guidance, troubleshooting, and application design, providing engineers with the expertise needed to maximize the relay’s potential. We also offer a straightforward warranty policy that covers manufacturing defects, giving users confidence in the long‑term durability of their investment.

Environmental responsibility is another cornerstone of Baomain’s manufacturing philosophy. The relay’s components are selected for recyclability, and the production process adheres to RoHS compliance, minimizing the use of hazardous substances. By integrating sustainability with performance, Baomain delivers a product that aligns with modern corporate responsibility goals.

Key Features

• 12 VDC coil with 10 A contact rating for versatile load handling

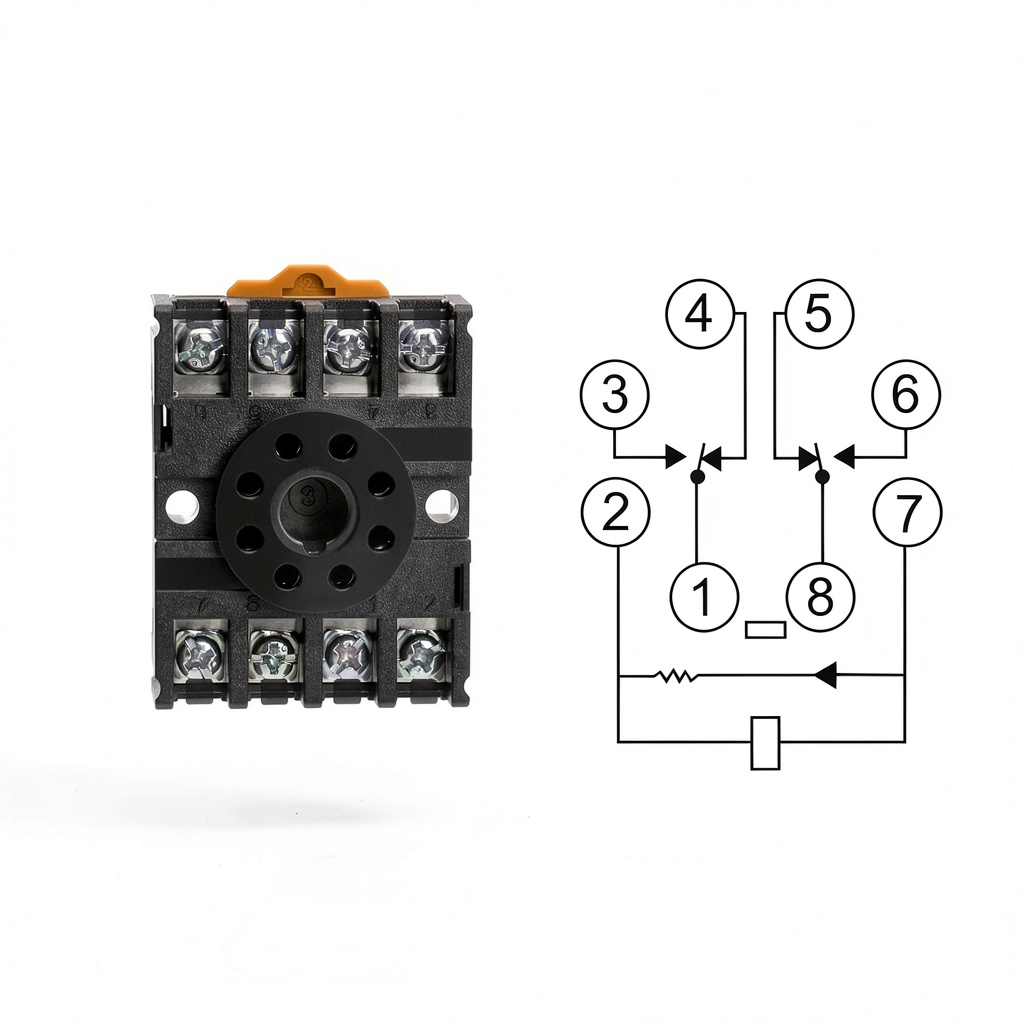

• DPDT (2 NO / 2 NC) configuration enables independent control of two circuits

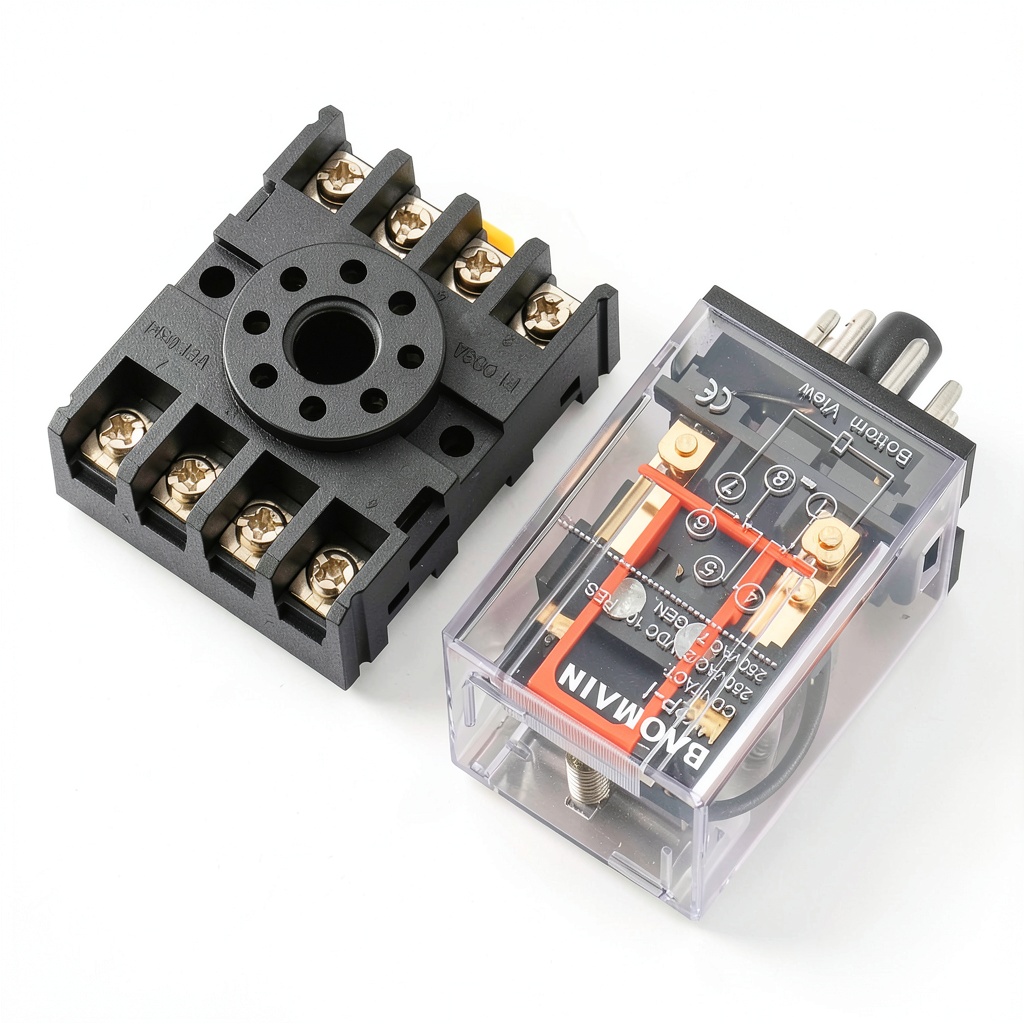

• Plug‑in terminal socket simplifies installation and reduces wiring time

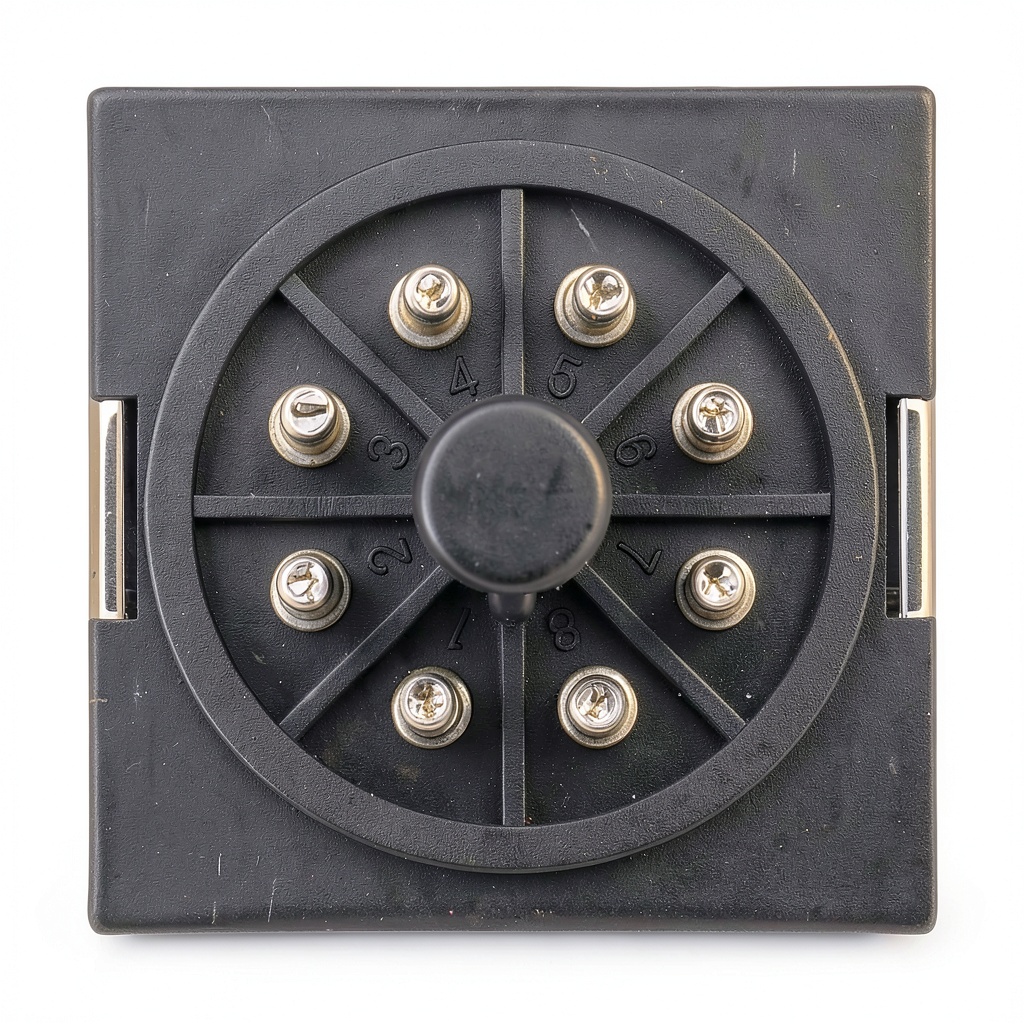

• Compact 8‑pin design fits standard 35 mm DIN rail panels
• Comprehensive after‑sales support and warranty for peace of mind

FAQ

What is the maximum load the relay can switch?

The relay is rated for a continuous current of 10 A at up to 250 VAC, making it suitable for most low‑to‑medium power applications.

Can the relay be mounted on a DIN rail without additional hardware?

Yes, the built‑in plug‑in terminal socket is designed for direct DIN‑rail mounting, requiring only standard mounting clips.

Is the relay compatible with PLC control systems?

Absolutely. The 12 VDC coil voltage aligns with common PLC output modules, and the DPDT contacts provide flexible interfacing options for PLC‑based automation.

What warranty does Baomain provide?

Baomain offers a one‑year limited warranty covering manufacturing defects, along with access to technical support for installation and troubleshooting.

Is the relay RoHS compliant?

Yes, the MK2P‑I relay complies with RoHS directives, ensuring it is free from hazardous substances and suitable for environmentally conscious projects.
