Electromagnetic Relay TWTADE YJ2N-LY 8-Pin 10A 110V Indicator Light

Description

Product Overview

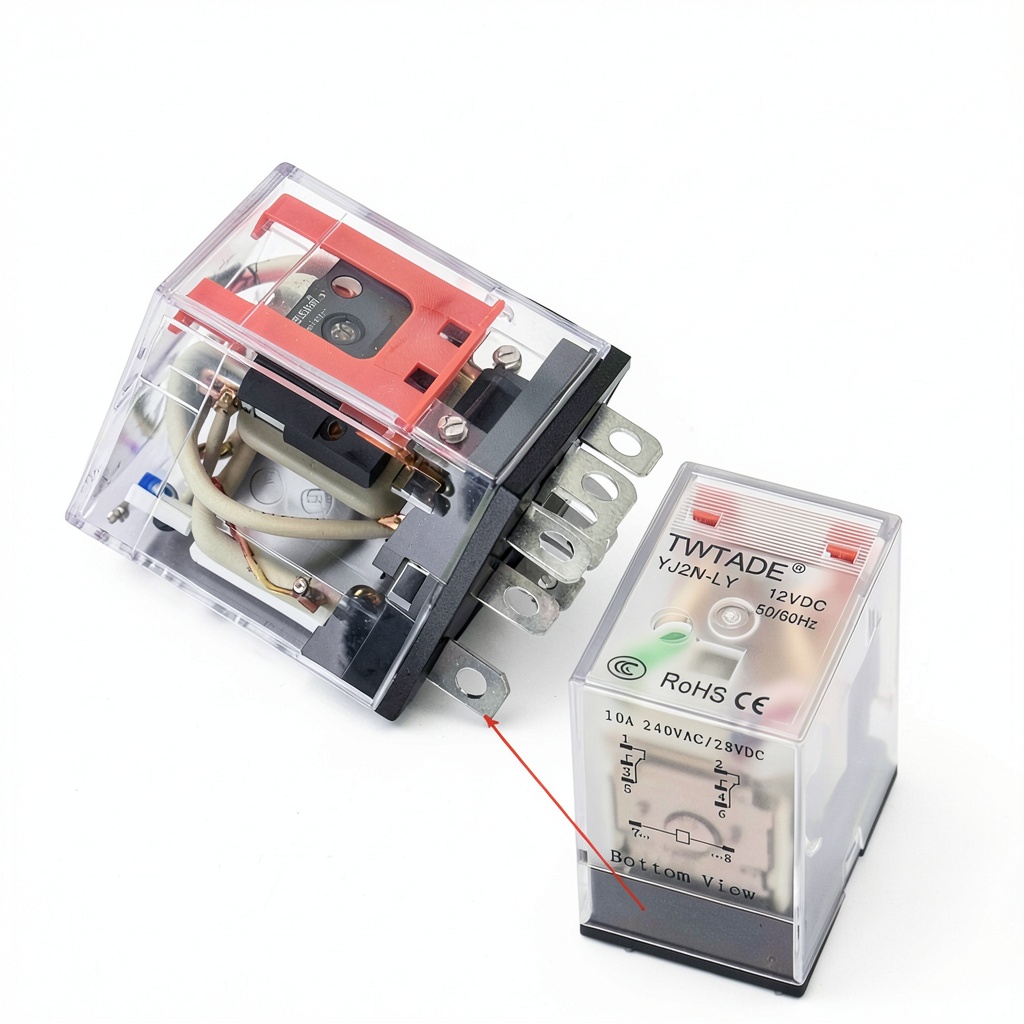

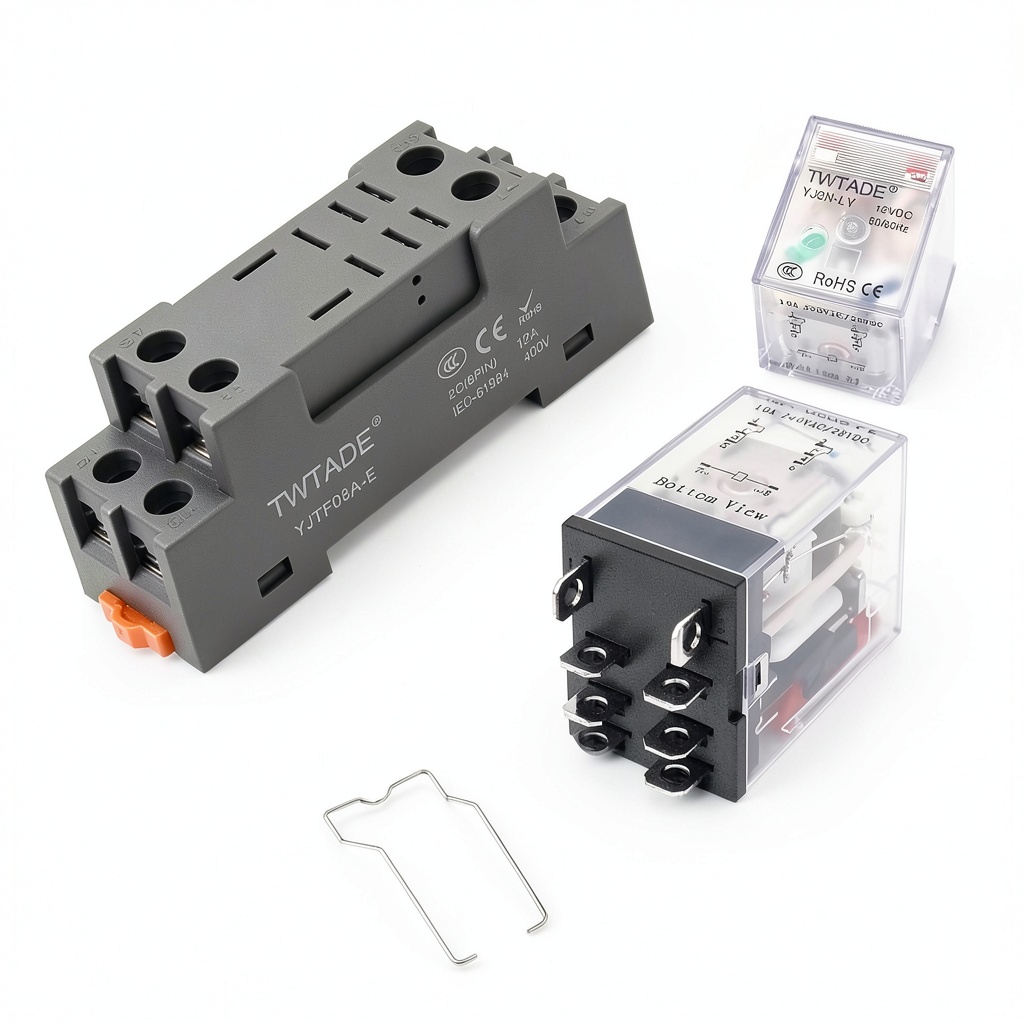

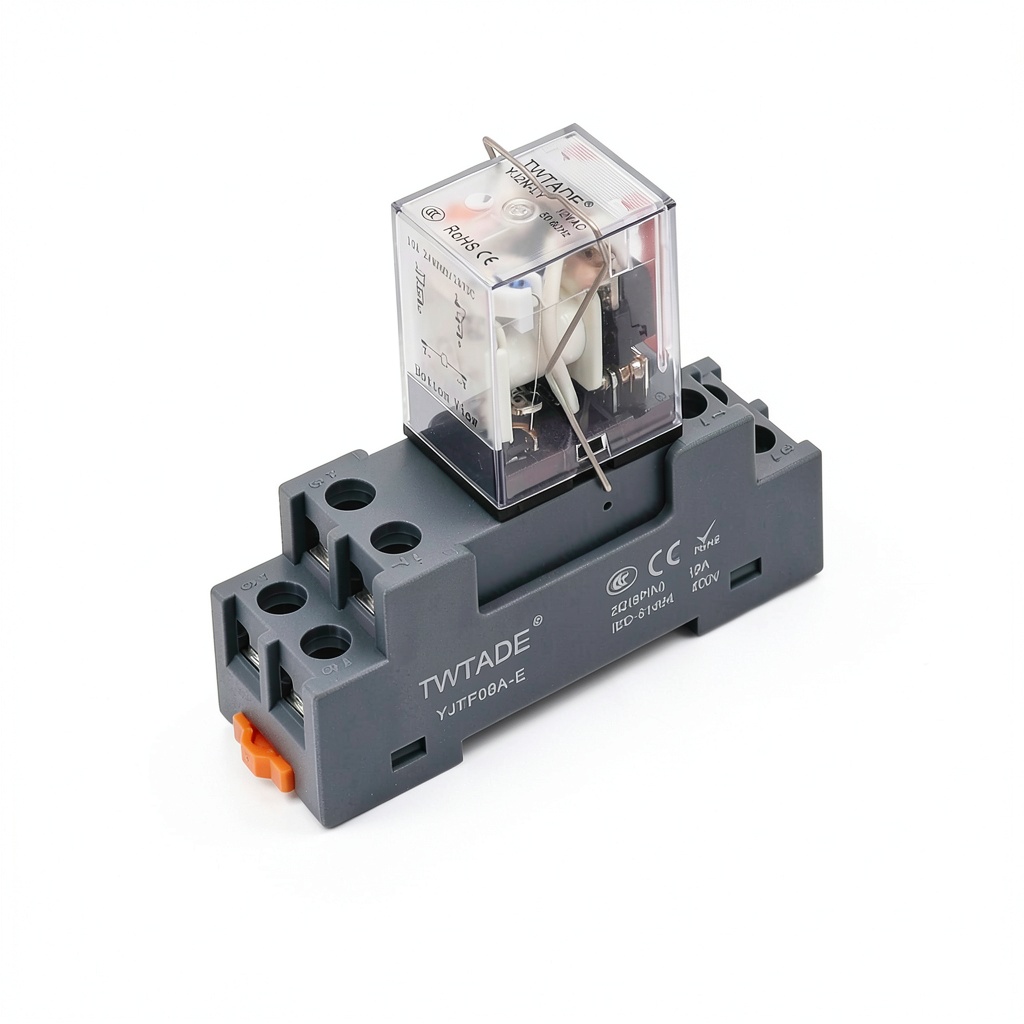

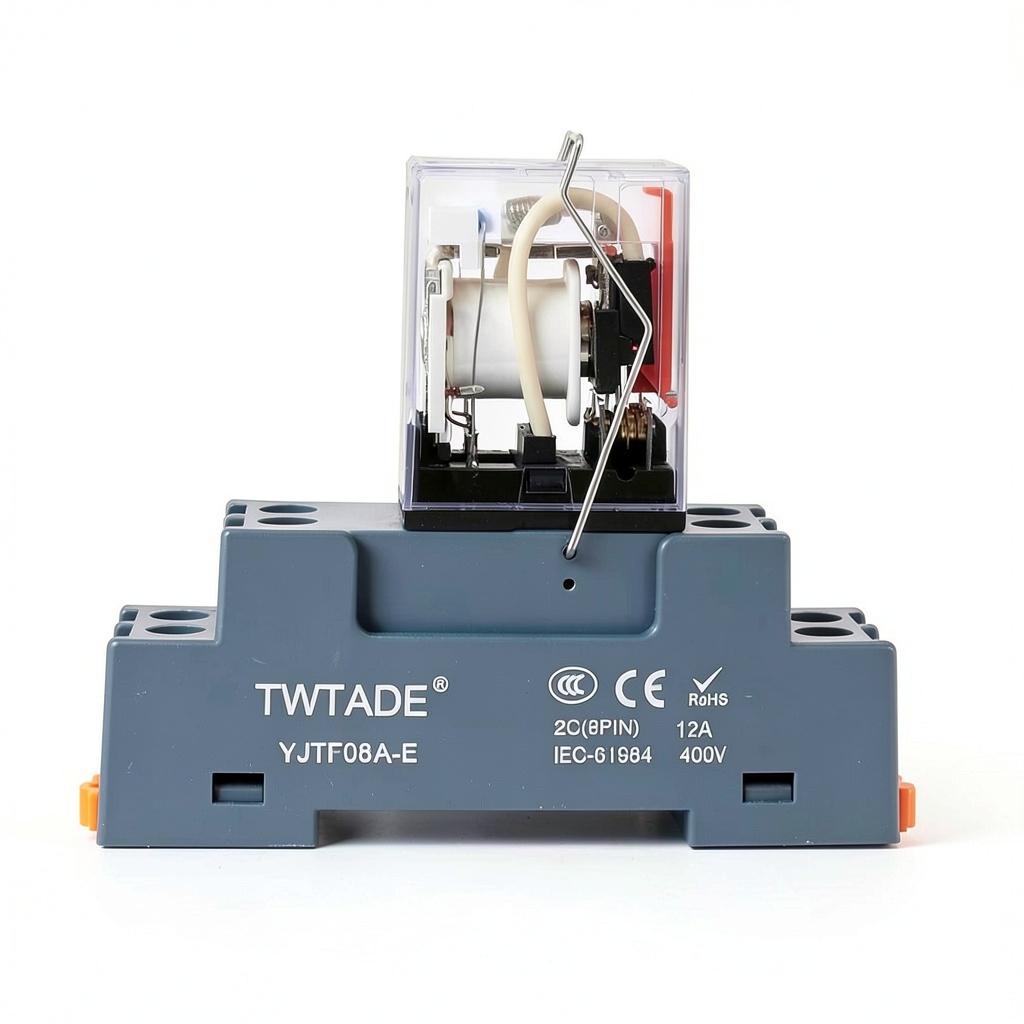

The TWTADE YJ2N-LY electromagnetic relay is engineered for precision and durability in demanding industrial environments. Constructed from high‑grade grey alloy, the relay housing resists corrosion and mechanical stress, ensuring a long service life even under continuous operation. The device features an 8‑pin DPDT (double pole double throw) configuration, providing two normally open (NO) and two normally closed (NC) contacts that can handle up to 10 A at 240 VAC or 28 VDC, making it suitable for a wide range of power control tasks. A built‑in indicator lamp—red for AC coil operation and green for DC—offers immediate visual feedback on coil energization, reducing troubleshooting time. The relay comes with a matching socket (model YJTF08A‑E), a sturdy base hook, a DIN rail clip, and mounting screws, allowing for quick and secure installation on standard DIN rails or panel surfaces. Dimensions of the relay itself are compact at 2.6 × 2 × 3.5 cm, while the socket measures 7.7 × 2.4 × 2.7 cm, providing ample space for wiring and heat dissipation.

Usage

This relay is designed for versatile use across multiple sectors. In manufacturing plants, it can control motor starters, conveyor belts, and pneumatic valves, delivering reliable switching performance that minimizes downtime. For building automation, the relay efficiently manages lighting circuits, HVAC systems, and fire alarm panels, thanks to its clear indicator light that signals coil status at a glance. Electrical engineers often integrate the YJ2N‑LY into PLC (programmable logic controller) modules and SCADA (supervisory control and data acquisition) systems, where its 8‑pin DPDT layout simplifies wiring schematics and reduces the number of required components. The DIN rail mounting system ensures that the relay fits neatly into standard control cabinets, while the socket base allows for easy replacement or upgrades without soldering, making it a preferred choice for maintenance crews and field technicians. Its ability to operate on both AC and DC coil voltages (including 110 V AC, 24 V AC, and 12 V DC options) provides flexibility for legacy equipment retrofits and new installations alike.

Why Choose Us

Choosing the TWTADE YJ2N‑LY relay means selecting a product backed by rigorous quality assurance processes. Each unit undergoes comprehensive electrical testing, thermal cycling, and mechanical endurance trials to meet international standards such as IEC 60947‑5‑1. TWTADE’s manufacturing facilities employ automated assembly lines that reduce human error, while a dedicated engineering team continuously refines the relay design for optimal contact resistance and coil efficiency. Customers benefit from a responsive support network that offers technical assistance, detailed wiring diagrams, and fast replacement parts, ensuring minimal disruption to operations. The relay’s high contact rating and low coil power consumption translate into lower operating costs and reduced energy waste. Additionally, the inclusion of a socket and DIN rail accessories in the package eliminates the need for additional purchases, delivering a complete solution that is ready for immediate deployment. With a 4.7‑star rating from over 700 verified buyers, the YJ2N‑LY has proven its reliability and performance in real‑world applications.

Key Features

• Robust 8‑pin DPDT design delivers 10 A at 240 VAC or 28 VDC for versatile power control.

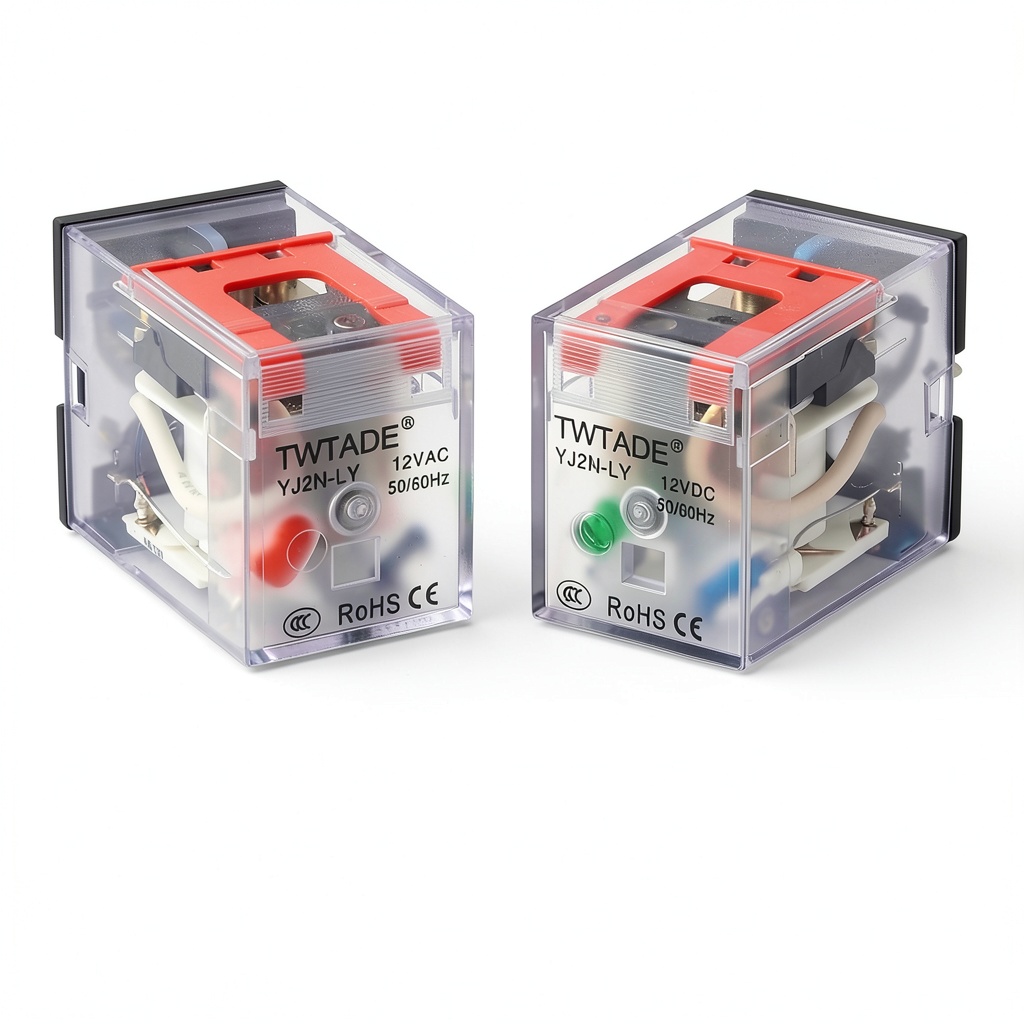

• Integrated red/green indicator lamp provides instant visual confirmation of coil status.

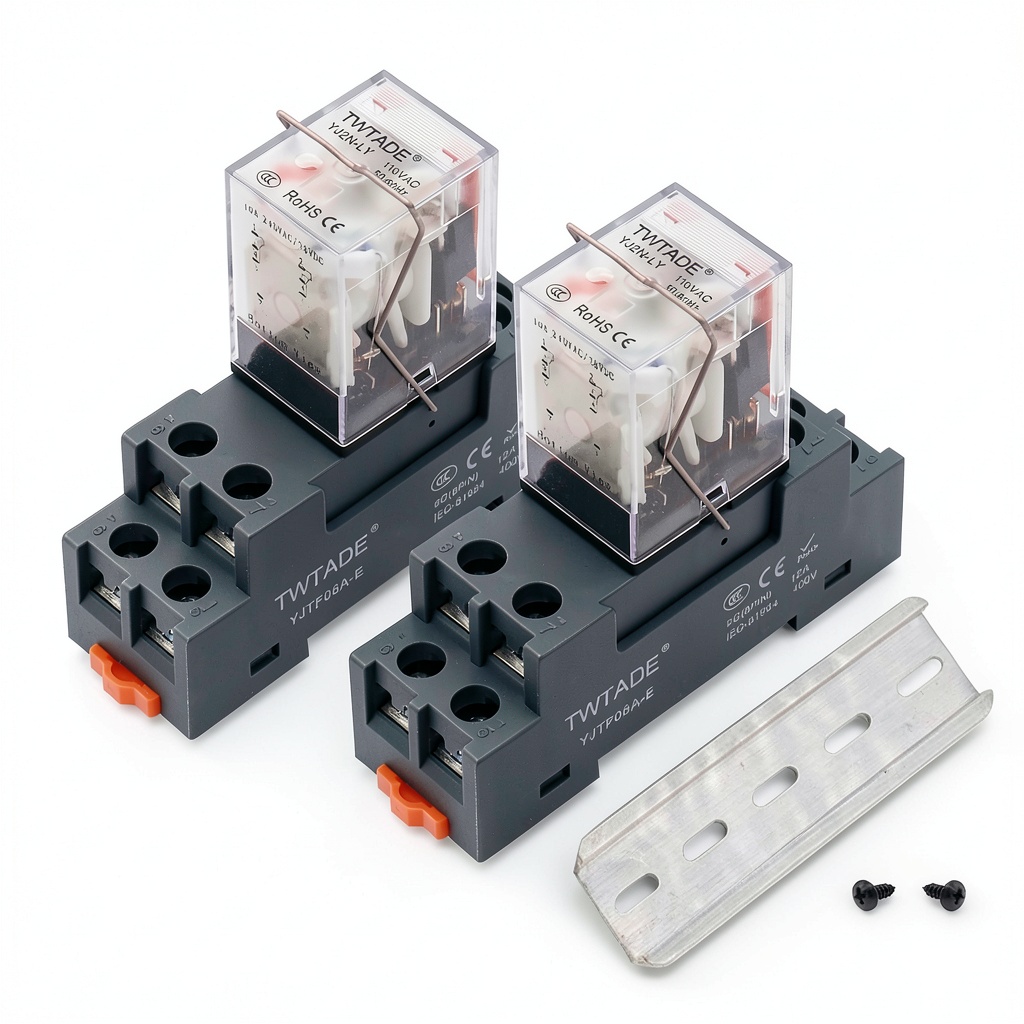

• Comes with matching socket, base hook, DIN rail clip, and screws for fast, tool‑free installation.
• High‑quality grey alloy housing resists corrosion and mechanical wear for long‑term reliability.
• Dedicated TWTADE customer support and rapid after‑sales service ensure peace of mind.

FAQ

What coil voltages are supported by this relay?

The YJ2N‑LY model is available in multiple coil voltage options, including AC 110 V, AC 24 V, DC 12 V, DC 24 V, and DC 6 V, allowing you to select the version that matches your system requirements.

How do I identify the normally open and normally closed contacts?

Refer to the wiring diagram printed on the socket: pins 1, 3, and 5 correspond to the normally open contacts, while pins 1 and 5 are the normally closed contacts. This labeling simplifies wiring and reduces installation errors.

Can the relay be mounted on a standard DIN rail?

Yes, the package includes a DIN rail clip and mounting screws, enabling secure attachment to any standard 35 mm DIN rail commonly used in control cabinets and panels.

Is the relay suitable for motor control applications?

Absolutely. With a 10 A contact rating and low coil power consumption, the relay can safely switch small to medium‑size motors, making it ideal for conveyor systems, pumps, and fans.

What warranty does TWTADE provide?

TWTADE offers a one‑year limited warranty covering manufacturing defects, backed by a responsive technical support team that assists with troubleshooting, replacement parts, and documentation.
