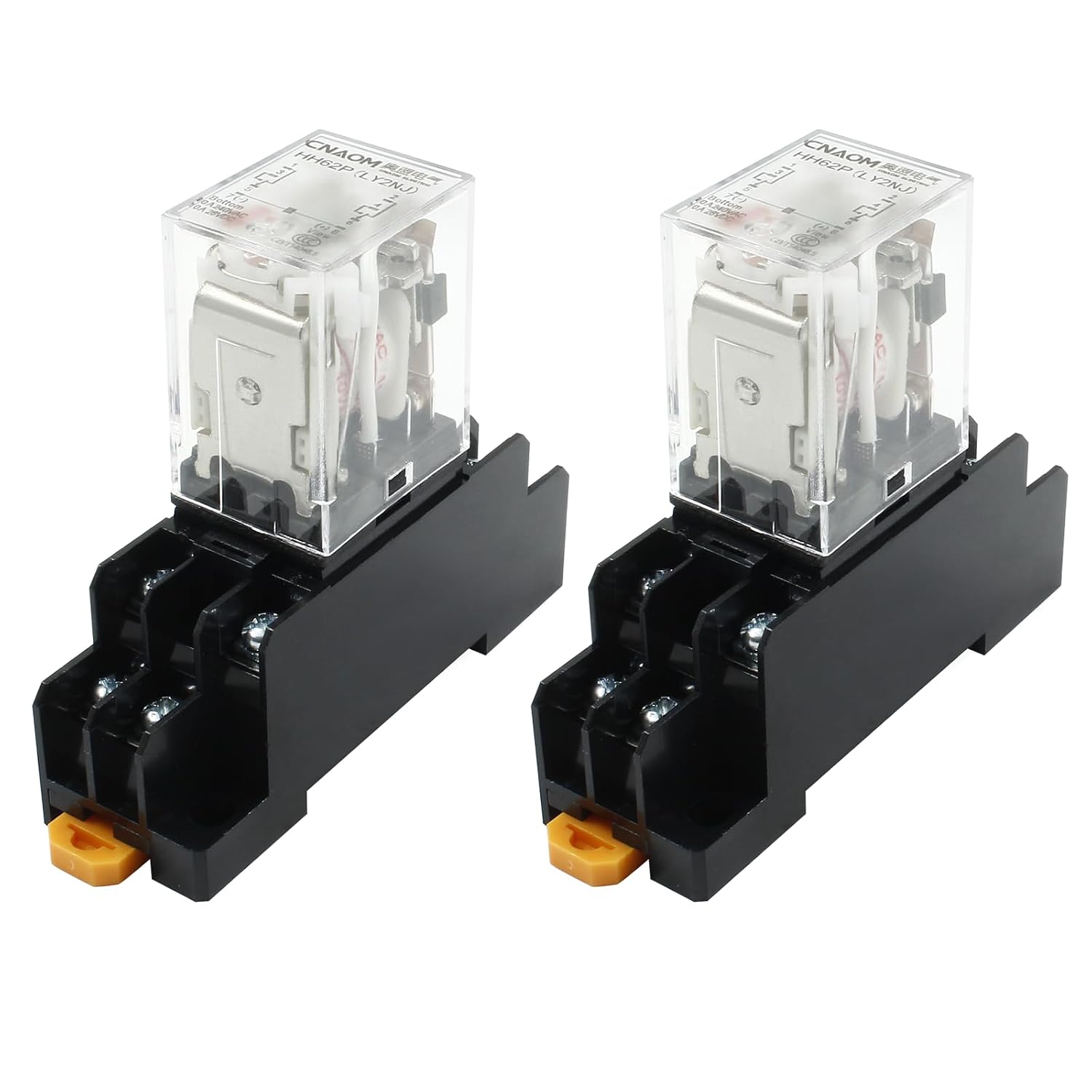

2 Pcs AC 110V 8 Pin 10A DPDT Electromagnetic Relay with LED Bonsicoky

Description

Product Overview

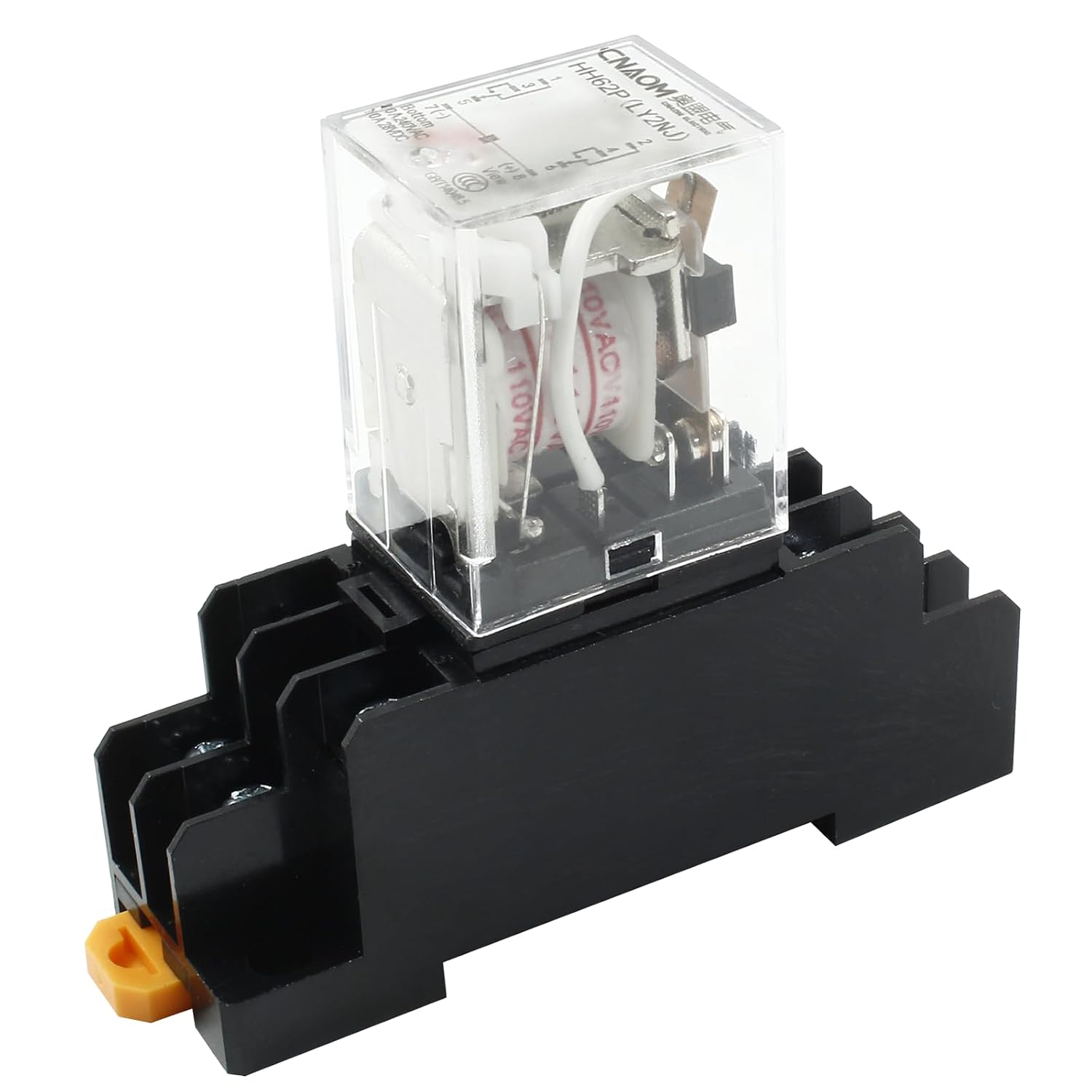

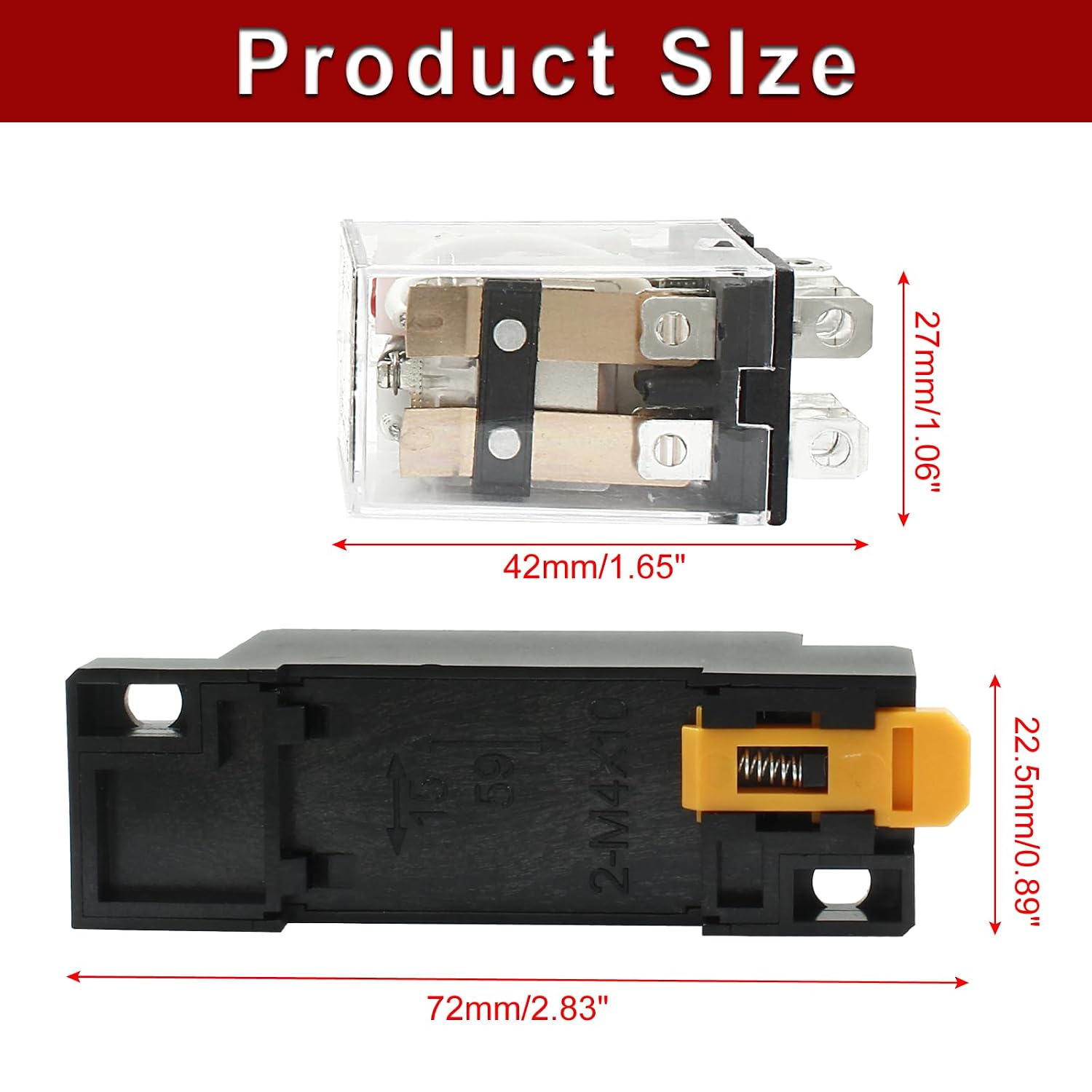

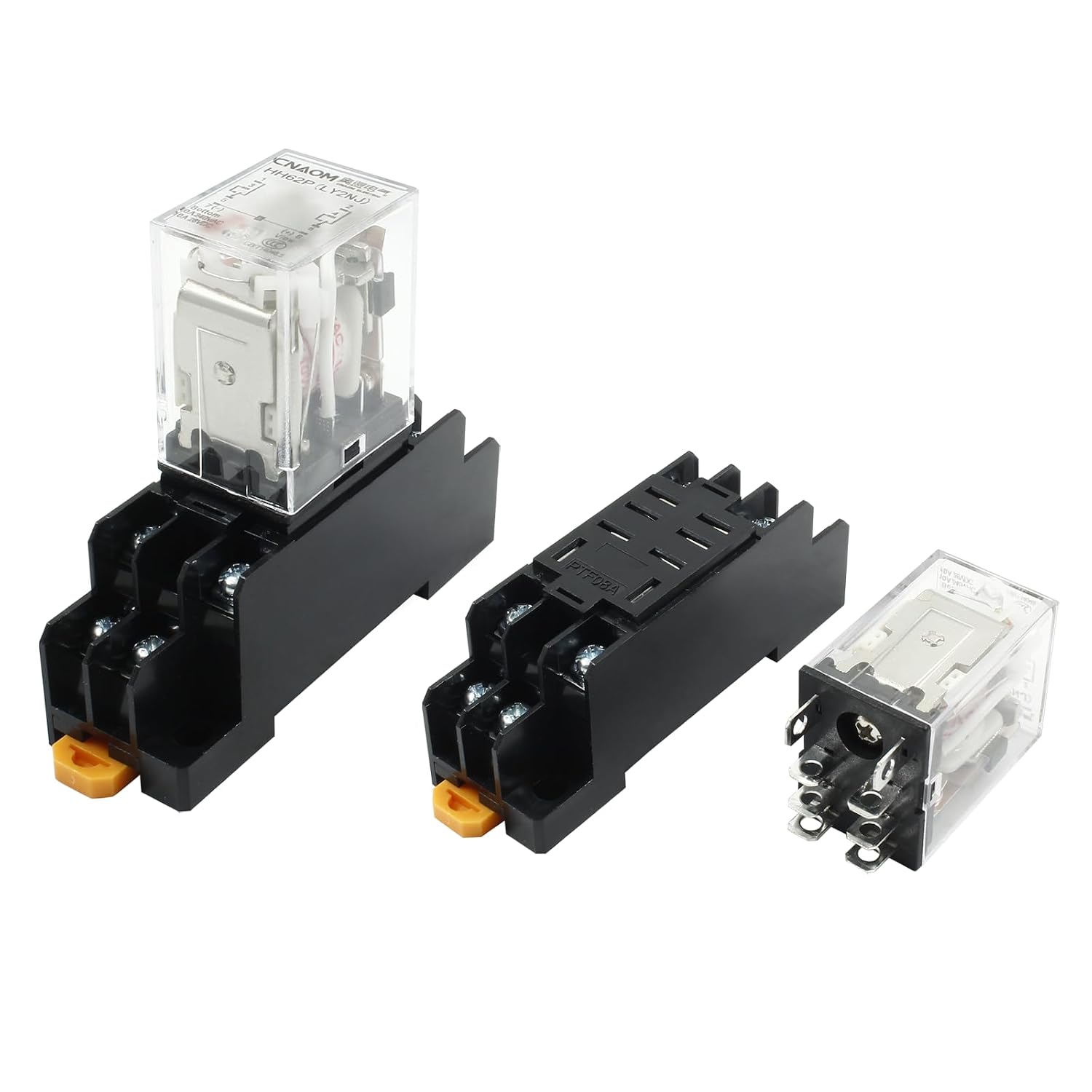

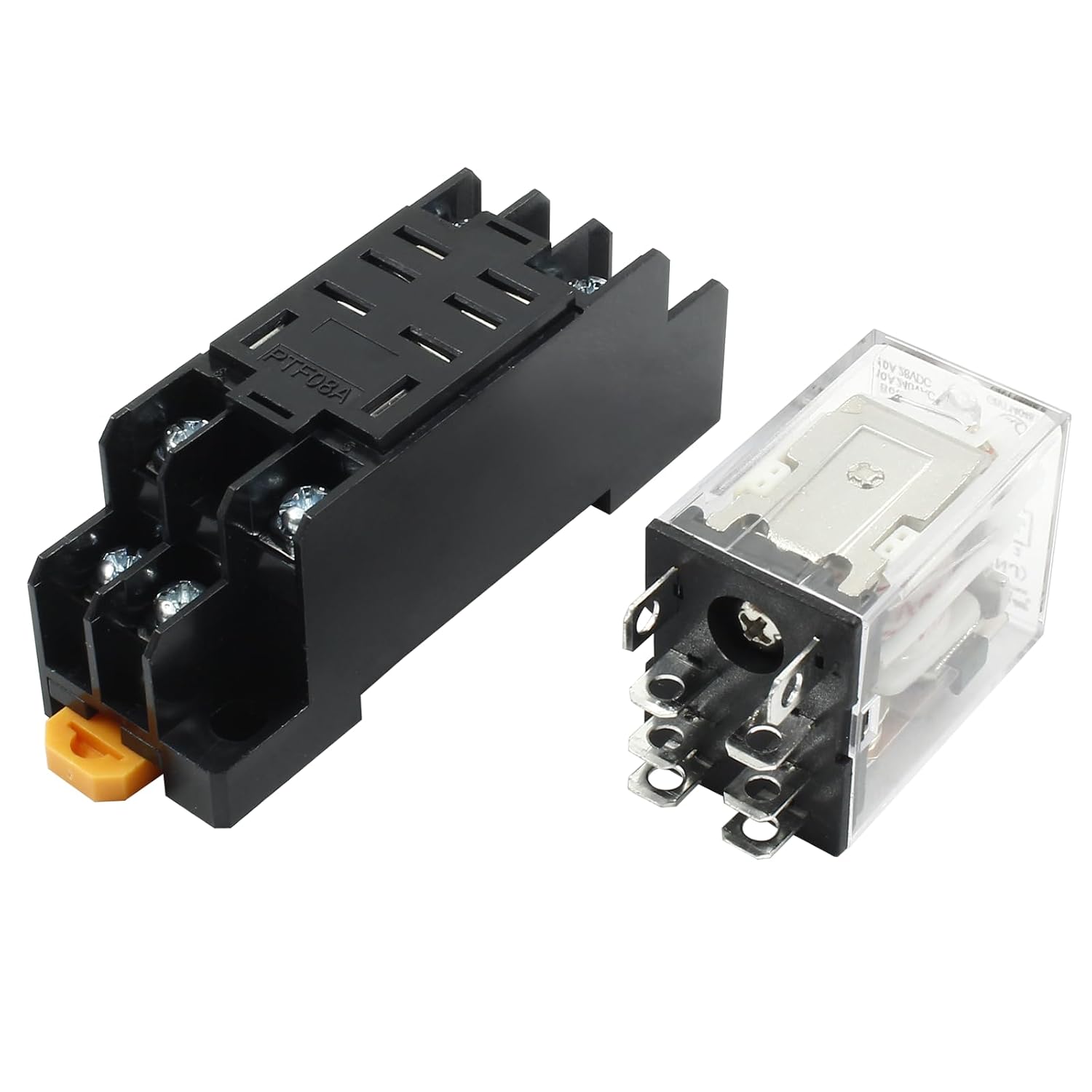

The Bonsicoky 2‑piece AC 110V DPDT electromagnetic relay is engineered for precision and durability in demanding industrial environments. Each unit features an eight‑pin configuration capable of handling up to 10 A of continuous current, making it ideal for a wide range of control applications. The relay incorporates a sturdy socket base that simplifies installation on printed circuit boards or DIN rails, while the integrated LED indicator provides immediate visual feedback on coil activation status. Constructed from high‑quality copper contacts and a flame‑retardant housing, the relay meets rigorous safety standards and offers consistent performance over thousands of operation cycles. Detailed specifications include a coil voltage of 110 V AC, a double‑pole double‑throw (DPDT) switching mechanism, and a compact footprint of 7.09 × 4.72 × 0.71 inches, weighing only 4.94 ounces.

Usage

This relay is perfectly suited for integration into industrial control panels, automation systems, and HVAC equipment where reliable switching and clear status indication are essential. It excels in applications such as motor starters, lighting control circuits, and safety interlock systems, providing a dependable interface between low‑voltage control signals and higher‑current loads. The LED indicator simplifies troubleshooting by allowing technicians to quickly verify coil energization without the need for additional test equipment. Additionally, the socket base design enables rapid replacement or upgrades in field installations, reducing downtime and maintenance costs. Whether deployed in a factory automation line, a building management system, or a custom robotics project, the relay delivers consistent performance under varying temperature and humidity conditions.

Why Choose Us

Choosing Bonsicoky means selecting a brand committed to quality, reliability, and customer satisfaction. Each relay undergoes rigorous testing procedures, including electrical endurance, contact resistance, and insulation integrity checks, to ensure it meets or exceeds industry specifications. Our manufacturing process incorporates precision stamping and automated assembly, resulting in tight tolerances and uniform performance across every batch. We also provide comprehensive technical support, offering detailed datasheets, wiring diagrams, and application notes to assist engineers in designing optimal solutions.

Beyond the product itself, Bonsicoky offers a responsive after‑sales service team ready to address any inquiries, warranty claims, or technical challenges. Our commitment to continuous improvement drives us to incorporate feedback from real‑world deployments, leading to iterative enhancements that keep our relays at the forefront of electromechanical technology. By partnering with us, customers gain access to a reliable supply chain, consistent product availability, and the peace of mind that comes from working with a trusted industry supplier.

Furthermore, our relays are designed with environmental responsibility in mind. The housing materials are RoHS compliant, and the manufacturing process minimizes waste and energy consumption. This focus on sustainability aligns with the growing demand for eco‑friendly components in modern industrial projects, allowing you to meet both performance and regulatory requirements.

Key Features

• Easy‑install socket base reduces wiring time and simplifies board mounting.
• Built‑in LED indicator provides instant visual confirmation of coil activation.
• High‑current 10 A rating ensures reliable operation for demanding loads.
• Robust copper contacts and flame‑retardant housing guarantee long service life.
• Responsive customer support and comprehensive documentation for seamless integration.

FAQ

What voltage range can the coil operate on?

The coil is designed specifically for 110 V AC operation. Using the relay with the specified voltage ensures optimal magnetic performance and contact actuation speed. Deviating from the recommended voltage may affect reliability and could void the warranty.

Can the relay be used in a 24 V DC system?

No, this particular model is rated for AC 110 V only. For DC applications, Bonsicoky offers a separate line of DC‑rated relays that provide comparable contact configurations and LED indicators, ensuring safe and efficient operation in low‑voltage environments.

How many switching cycles can the relay handle?

Under normal operating conditions, the relay is rated for at least 10 000 mechanical switching cycles and 5 000 electrical cycles. Proper installation, adequate cooling, and adherence to the specified load limits will help achieve or exceed these figures.

Is the LED indicator compatible with low‑voltage control circuits?

Yes, the LED is internally connected to the coil circuit and lights up when the coil is energized at 110 V AC. It does not require an additional power source, making it convenient for integration with standard control voltage levels.

What warranty does Bonsicoky provide?

Bonsicoky offers a one‑year limited warranty covering manufacturing defects and premature failures under normal use. The warranty includes replacement of defective units and technical assistance to resolve any performance issues.
